Since I had moved the essential bus bar one hole lower, I added the new bottom hole and nutplate (keeping the top hole for the fuel pump relay):
Additional hole for essential bus bar
I also added nutplates for #8 screws to hold the main wiring harness through adel clamps, underneath the right side flange:
Panel with nutplates for holding the main wiring harness
Alternator regulators attached to panel ribs
Attaching FlyEFII ECUs to the panel ribs
FlyEFII ECUs and display turned on
FlyEFII ECUs attached to panel ribs
FlyEFII connectors attached to firewall
FlyEFII ECUs with connectors attached to firewall
For attaching the Bus manager, I used two of the same holes that attach the ECUs, plus another pair of holes for AN3s, and added nutplates (the plastic is pretty thick, and I used soft rivets for those) (I also had no L4 nutplates at hand, so had to order those):

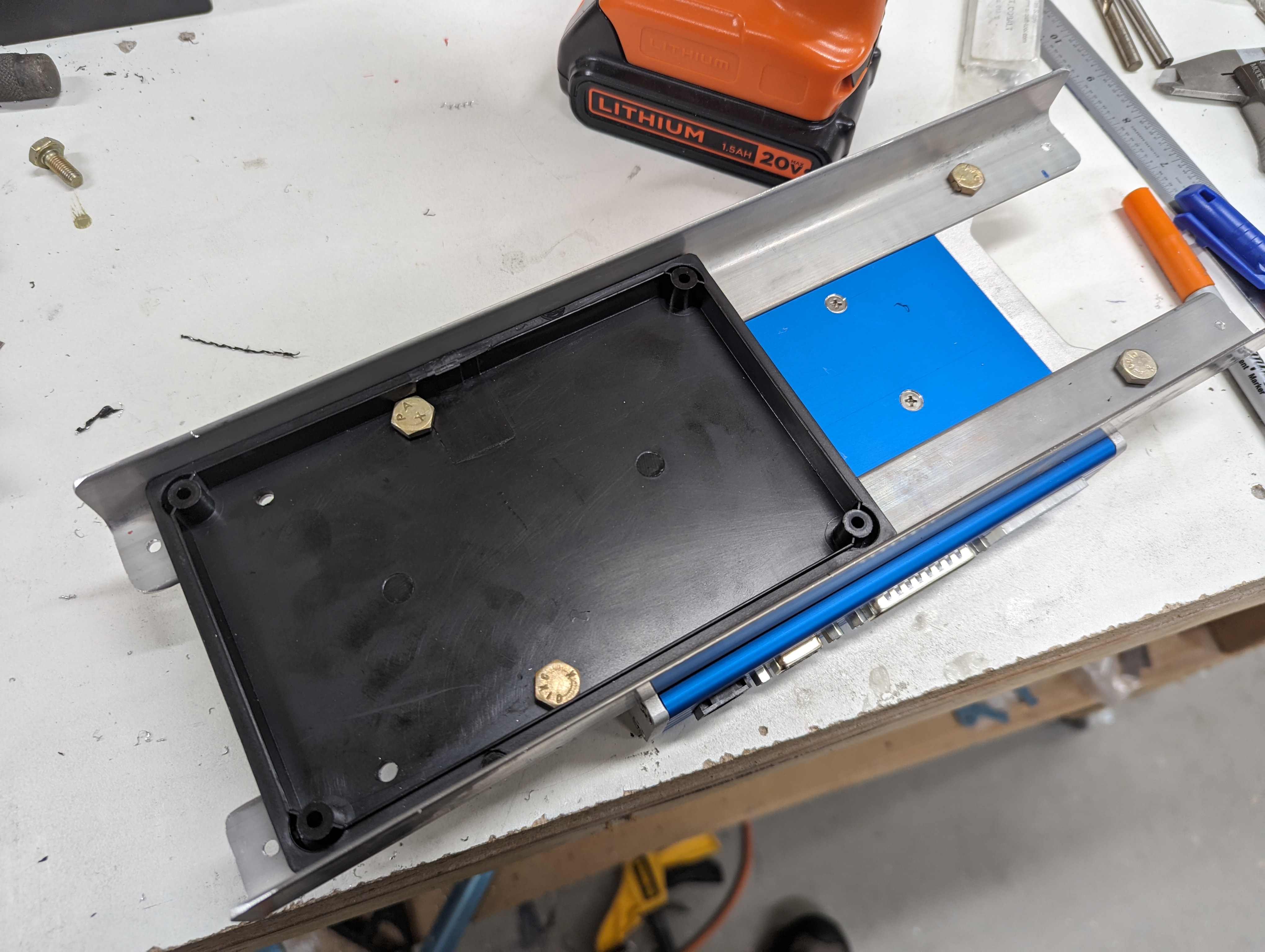

Bus manager cover attached to mounting angles
Bus Manager cover with nutplates attached
Last but not least, I trimmed the side of the mounting angle to allow airflow out of the Bus Manager:
Bus manager mounting angle, trimmed for the fan opening
I finally obtained a CO Guardian 455, so I had to cut a hole for it on the bottom center insert - I laser-cut a template out of acrylic, then used that to cut the carbon fiber + metal insert:
Cutting the CO Guardian template from acrylic
CO Guardian template for cutting the bottom center panel insert
CO Guardian template over the bottom center panel insert
Bottom center panel insert, with opening for the CO Guardian
Bottom center panel insert with CO Guardian 455 installed
I had to slightly adjust the bottom center panel for that to fit:
Bottom center panel, trimmed to fit the CO Guardian
For mounting the GTR20 radio, I made a custom mount similar to the one Vans provides for the wingtip strobes, which lets me mount it in either direction, and attaches to the side of the tailcone:
I haven't been too good at keeping the posts here going - this one should've gone out in December, and there's a lot of other work we've done that I haven't posted yet.
I match-drilled the throttle quadrant to the tunnel cover and adjusted it to be flush against the center console:
Throttle quadrant attachment match-drilled into tunnel cover
Throttle quadrant adjusted to center console
I also attached the headphone cord clips to the center console:
Center console insert with cord clips installed
We then primed and riveted the subpanel and nutplates for attaching the avionics:
Subpanel parts primed
Subpanel riveted together
The only part remaining for this section is actually riveting the subpanel and skin to the fuselage, which I'll do after the firewall penetrations are ready.
