Damazio family's RV-10 project: June 2021

Right door fitting and Aerosport latch assembly

After a LOT more sanding of the right door edges (OMG will the sanding ever end?), we got to the point where they fit reasonably well within the cabin cover:

Lower aft corner of the door, sitting flush with the fuselage

Lower forward corner of the door, sitting flush with the fuselage

It was then time to attach the hinges. The parts were WD-1018-L/R and WD-1019-L/R, and the plans are slightly confusing about what "L" and "R" mean - they show L and R on the left door, but then no hint as to whether the right door is a mirror or the same. Facebook rescued me (they're the same - R is forward on the passenger side and aft on the pilot side), so I made 1/8" shims and drilled them into place:

Labeled door hinges

Door hinge positioning shims

Door hinge in position for drilling

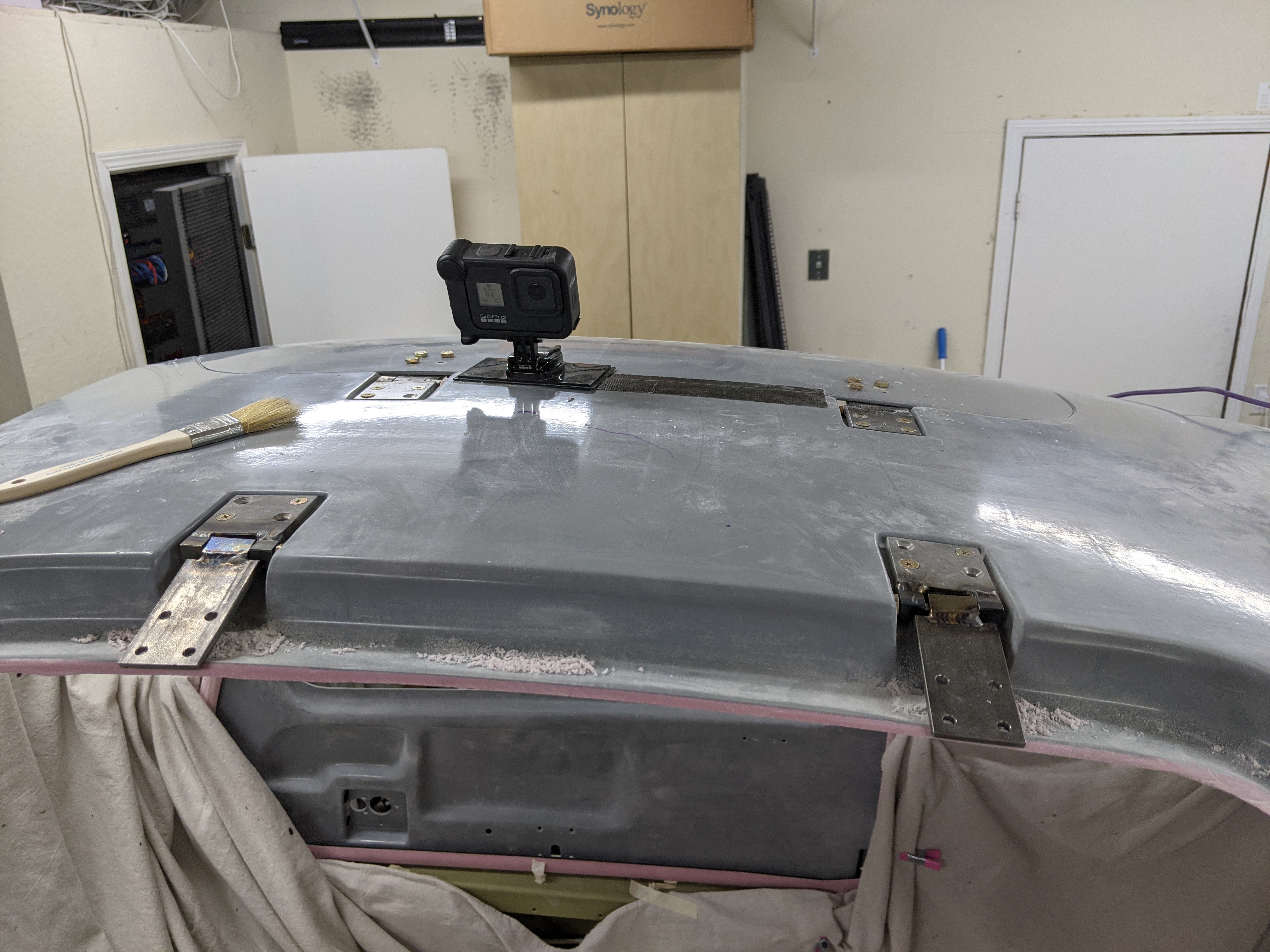

Door hinges attached to cabin cover

With the door in place, we finally match-drilled the hinges into it:

Door trimmed to fit sitting in the cabin cover

Preparing to match-drill the hinges to the door

Door swung open on its hinges

Hinges bolted to the door

Door sitting flush with the cabin cover

I also got to work on assembling the handle/latch mechanism (for which Ed's video is extremely helpful, except they mount the e-ring on the opposite side - seems to be an older version of the same kit?):

Door handle plates with nutplates riveted

Handle aseembly with handle plates, spur gear and Aerosport inner ring

Handle mechanism attached to delrin spacer, strike plate, lock and cam

Trimmed lock cam to rotate freely

With this, the handle and lock mechanisms work!

Finally, I trimmed the openings and edges of the Aerosport door handle cover a bit, to fit better and to not interfere with the latch spring when mounted:

Enlarged handle cover hole to not interfere with spring

Some additional trimming of the covers will still be required to fit the lock.

Now on to repeat all the cutting and sanding for the other door...

Time lapse:

Total cabin door rivets: 40

Total cabin door time: 84.9h

Door trimming progress

I did the initial trimming of the edges of both doors with the Dremel:

Trimming off outside door edges

All door edges trimmed off

Then started the real journey of fitting the doors - I started by making small notches with the Dremel, slowly making them deeper until I reached inner surface of the cabin cover all around the door:

Notches around door to find proper trimming depth

Door in place after initial trimming

After this I trimmed off the index hole "flaps", and now I have a TON more sanding/trimming ahead to get the doors to actually fit in the cabin cover. Sand, try it on, still doesn't fit, take it off, rinse, repeat - that's my life now :)

In the meantime, I also 3D printed the door strut placeholder, which will be used for drilling the gas strut attach brackets into the door:

3D printed gas struct placeholder next to the actual gas strut

Time lapse:

Total cabin door rivets: 32

Total cabin door time: 69.6h

Baggage door mostly completed

With the baggage floors riveted on, I moved to the next section, riveted the door hinge frame, and attached the door (using the split pin mod that others have also used):

Baggage door installed in place

Door attach pin, split in the middle and folded into the door

Baggage door strike plate

Door seal applied around the door borders

The only thing left on this section is to attach the left baggage cover, which I'll do later along with the section 35 panels.

Time lapse:

Total baggage door rivets: 173

Total baggage door time: 14.3h

Rear seat floors and mid seat rails installed

Along with installing the baggage floors, I also installed the rear seat floors. I started by painting the seat belt attachment points, which I hadn't before for some reason:

Painting the protruding rear seat belt attachment points

Then protecting the conduit hole so the conduits don't get damaged by the edges:

Grommet edging to protect the rear seat floor conduit hole

And finally, actually riveting the floors, which was kind of annoying to do without getting inside the plane (which I'm avoiding since it's still on sawhorses):

Riveting the rear seat floors

Riveted rear seat floors

The mid seat rail support doesn't really have attachment instructions (an omission in the manual), but since this section calls for installing the seat floors over them, I also installed them at this time - they were a royal pain to get bolted down and torqued, and required 3 hands and a lot of contortionism:
